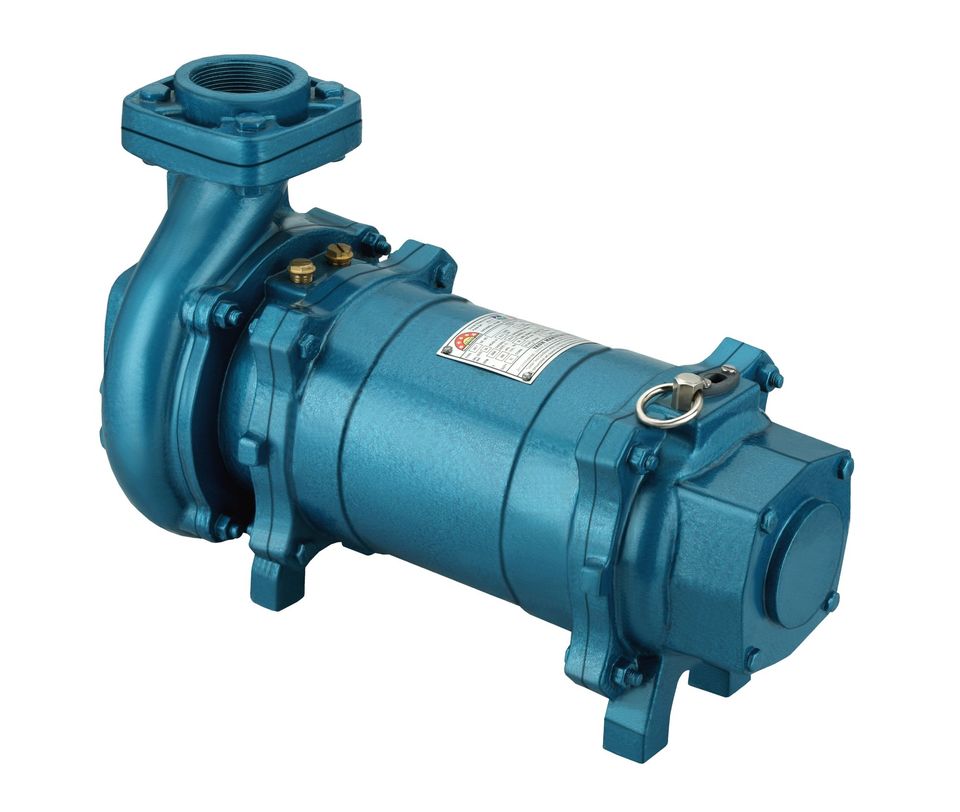

V-7 C.I. BODY OPEN WELL SUBMERSIBLE PUMP SET 5.00 H.P. THREE PHASE (65X65) (COPPER ROTOR)

Model : YM-522

SALIENT FEATURES

→  Specially designed to start in low voltage and sustain in high voltage fluctuations.
→  High electrical and mechanical efficiency.
→  Higher heat dissipation.
→  Dynamically balanced rotor and other rotating parts for uniform clearance.
→  Specially designed bearing to withstand axial thrust loads.
→  Designed for high voltage fluctuations.
→  Noise free operation.
→  Modular design and all parts are easily interchangeable.
→  Energy Efficient Models.
→  Higher efficiency resulting in lower operating cost.
APPLICATION
→  Agriculture Farm
→  Industries Water Supply
→  Sprinkler & Drip Irrigation
→  Gardens
→  Residential Complex
→  Hospitals
→  Water Treatment Plant
TECHNICAL DATA
MODEL
→  YM-522
POWER→  3.70 Kw
H.P.→  5.00
STAGE→  01
CURRENT IN AMPS→  10.00
VERSION→  THREE PHASE  250 TO 440 VOLT
RATED SPEED IN RPM→  2880
FREQUENCY→  50 Hz
CATEGORY→  B
DUTY TYPE→  S1 (CONTINUOUS)
TYPE→  WET TYPE
CONNECTION→  STAR
OPERATING DATA
DUTY POINT HEAD→  20 METERS
DUTY POINT DISCHARGE→  657 LPM  39.42 m³/hr
OPERATING HEAD RANGE→  14 TO 26 METERS
OPERATING DISCHARGE RANGE→  818 TO 392 LPM
SUCTION
DELIVERY		→  65 MM  (2.5")
→  65 MM  (2.5")
CORRECT SPEED IN RPM→  2820
MAXIMUM FLOW RATE→  882 LPM  52.92 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		→  28 METERS
→  2.80 Bar
MAXIMUM LIQUID TEMPERATURE→  35º
PARTICULARSMATERIALS OF CONSTRUCTION
MOTOR BODY→  CI - FG -200
BEARING BUSH→  LTB - 4 BRONZE
MOTOR SHAFT→  S.S.410
THRUST BEARING→  S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER→  CI - FG -200
STAMPING→  CRNO - M45
SCREWS / STUDS / OTHER PARTS→  S.S. 410 & S.S. 202
IMPELLER
CASING		→  CI - FG - 200
→  CI - FG - 200
WINDING WIRE→  E.C. GRADE COPPER / HIGH INSULATION
ROTOR →  E.C GRADE COPPER & CRNO - M45
